CABLO MV 3200 block carriage

CABLO MV 3200 block carriage

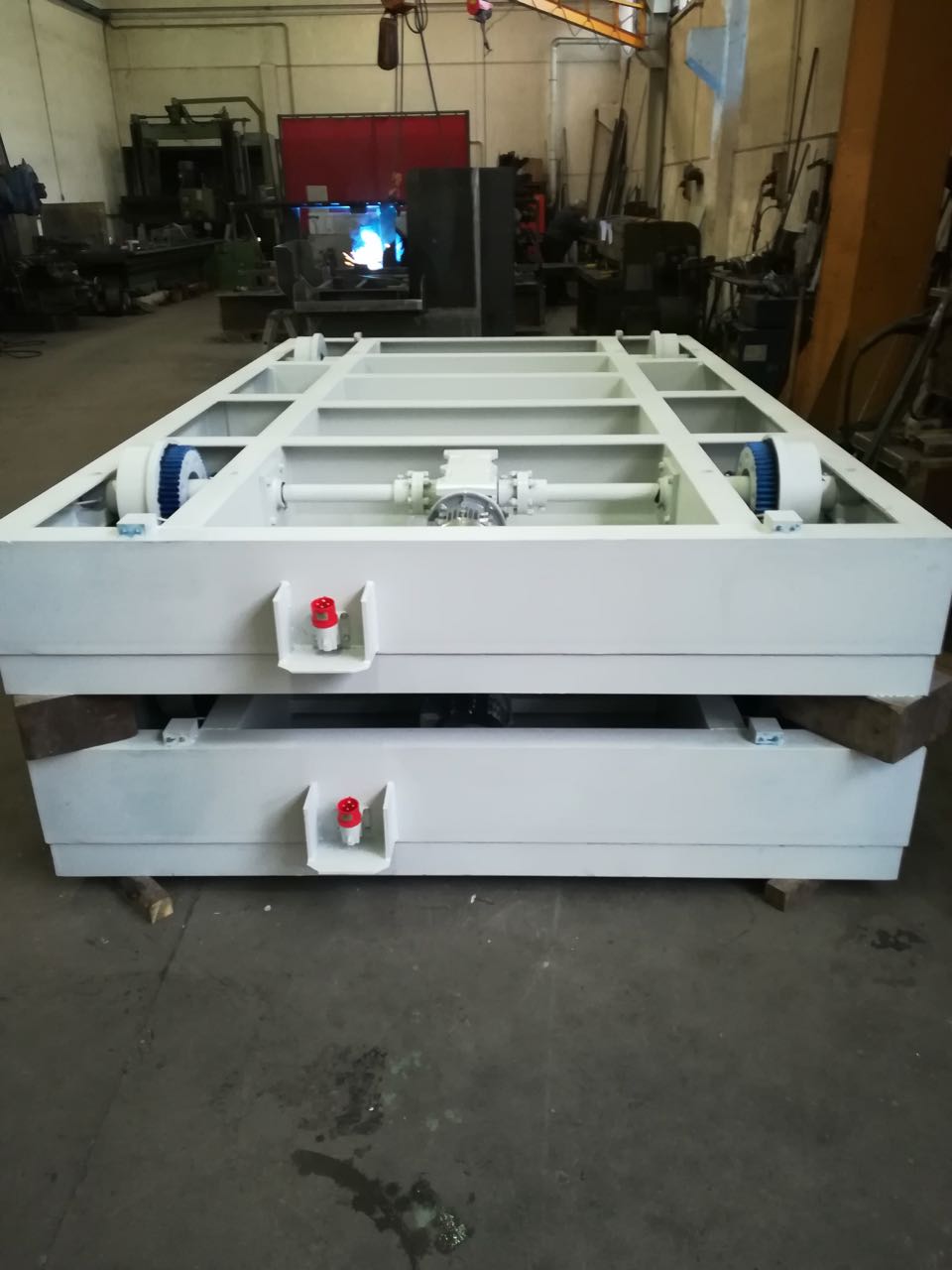

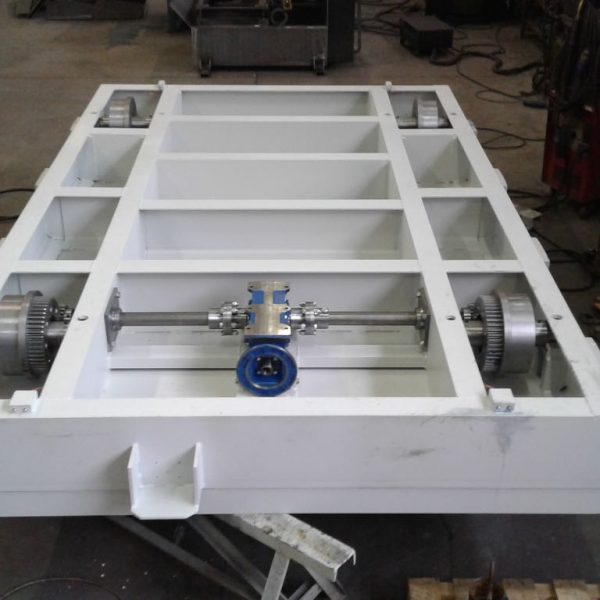

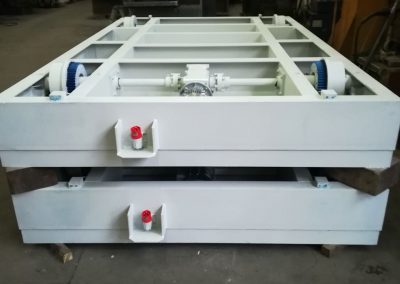

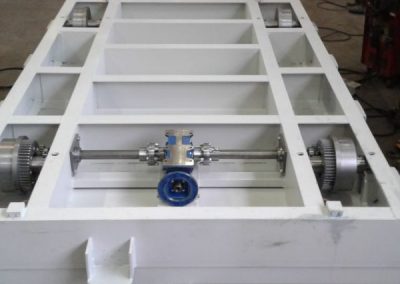

Motorized carriage for moving marble or granite blocks.

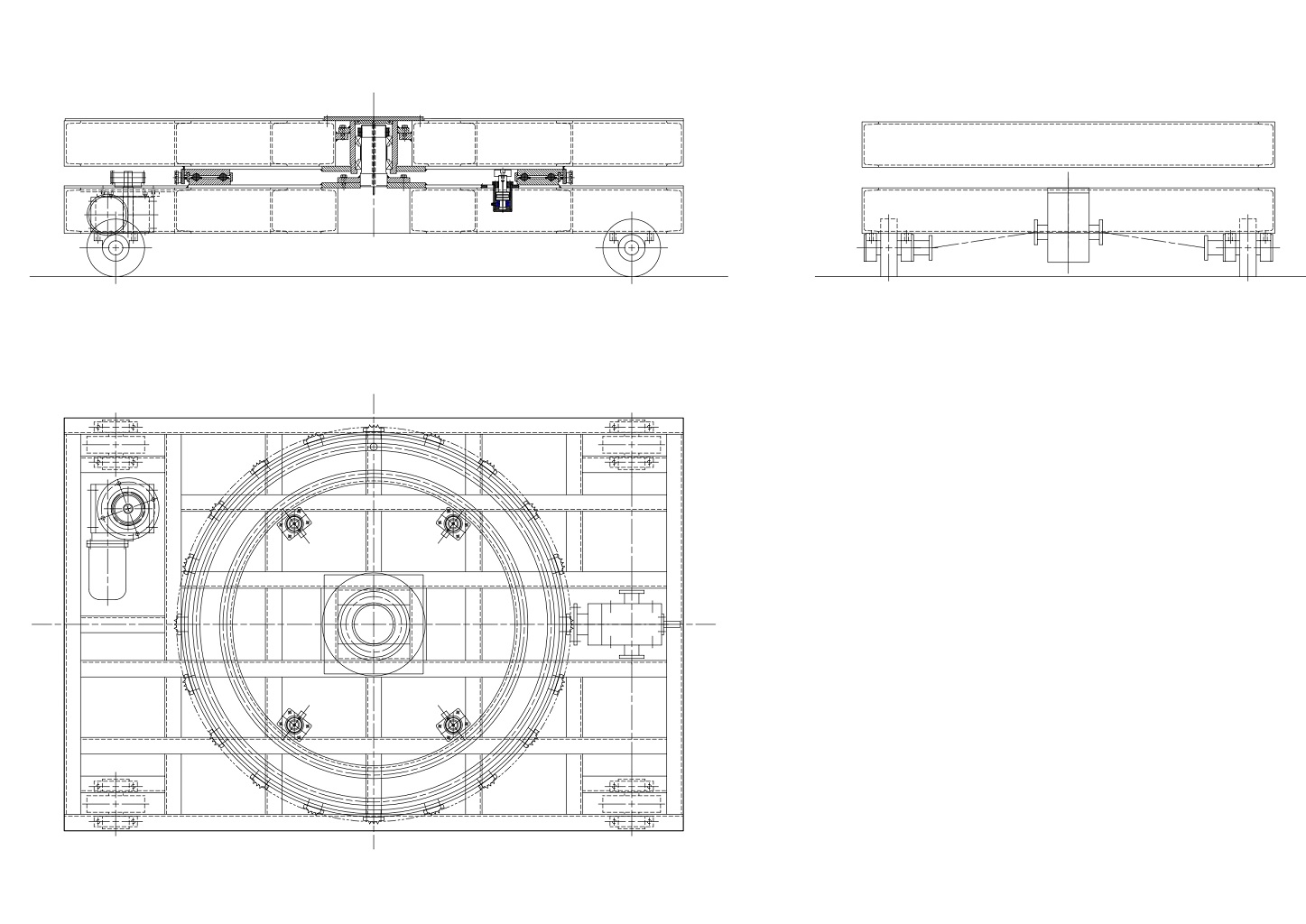

Structure of the machine

Trolley carrying blocks of marble or granite with a thick ā€œUā€ profile structure, electro-welded with the supporting parts machined.

Longitudinal movement on 4 flat wheels with stop.

Front entrance.

4 scrapers for cleaning rails.

Two-component epoxy paint.

Technical features

  • Carriage length: 3,000.0 mm
  • Carriage width: 2,200.0 mm
  • Capacity: 3,200.0 kg
  • Installed power: 2.2 kW
  • Carriage weight: 1,500.0 Kg
