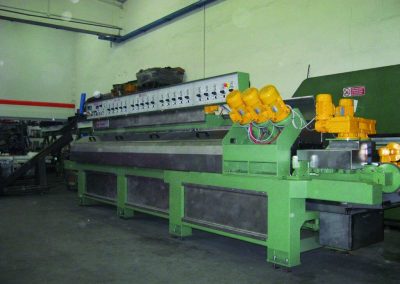

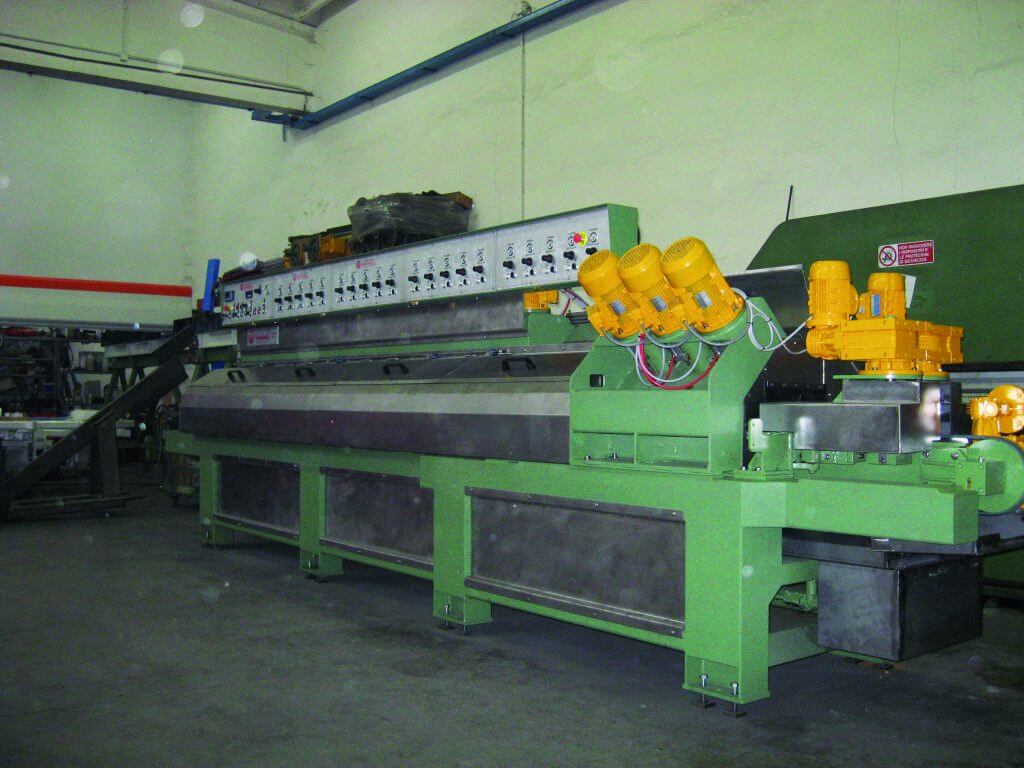

Vertical edge polisher for 20 heads LMV BV 150 14 + 6 skirting board

Vertical edge polisher for 20 heads LMV BV 150 14 + 6 skirting board

Automatic machine for polishing and vertical beveling of flat edges of marble and granite strips.

Structure of the machine

Structure consisting of a heavy carpentry bench, the support beam of the spindles fixed to it and a system of sliding belts that stabilizes the strand in the abutment position.

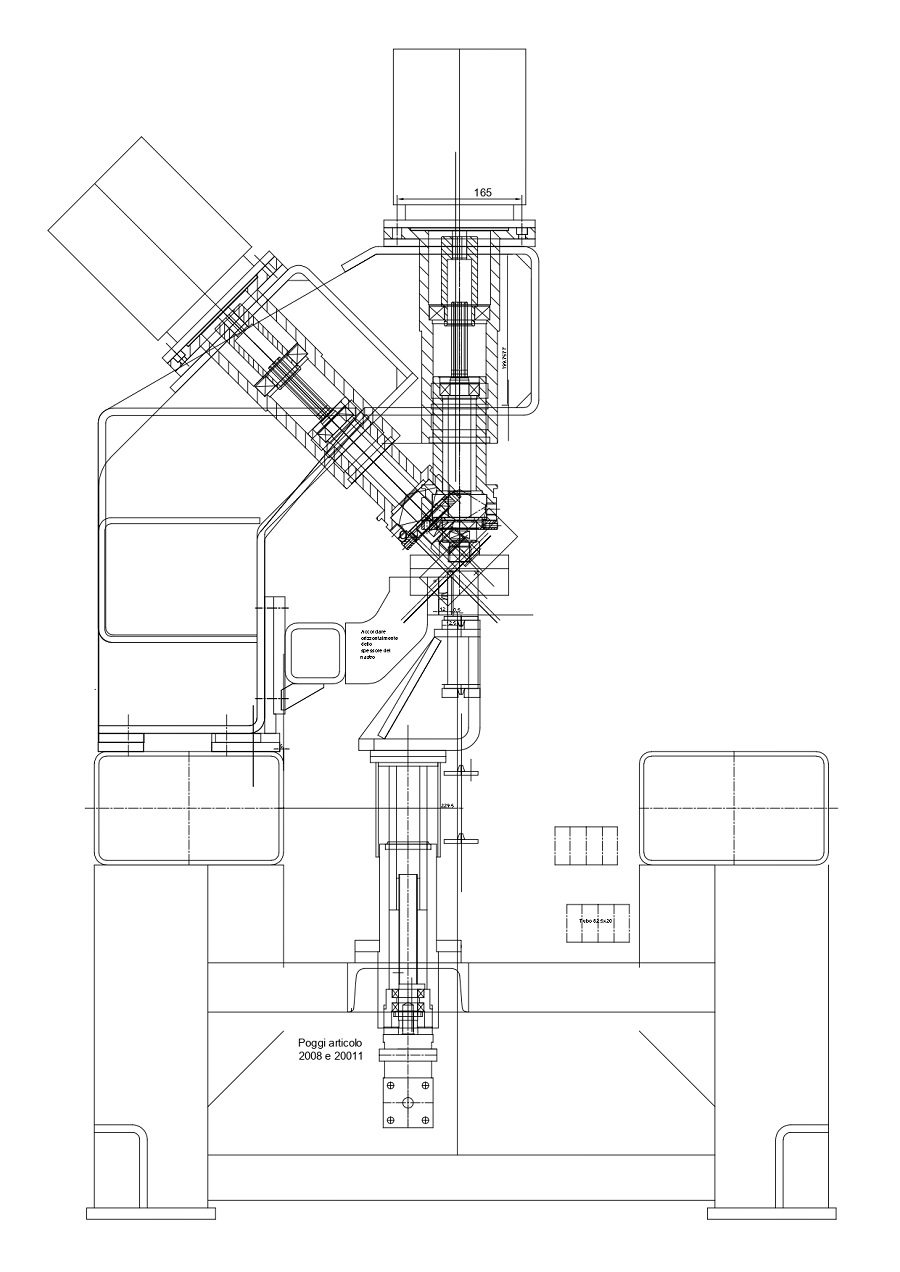

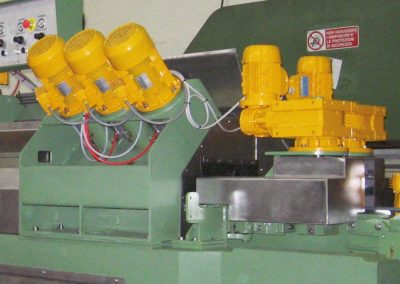

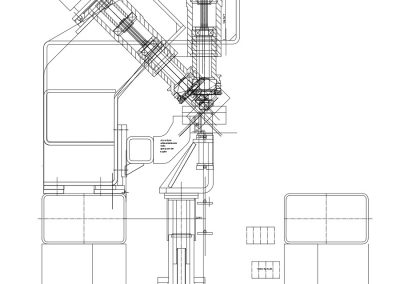

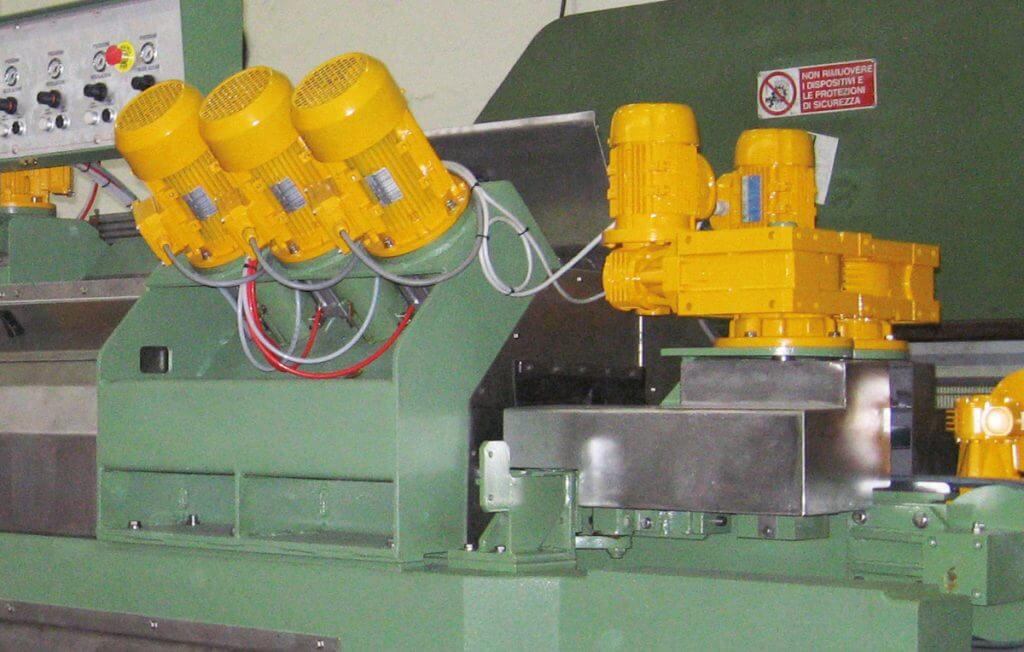

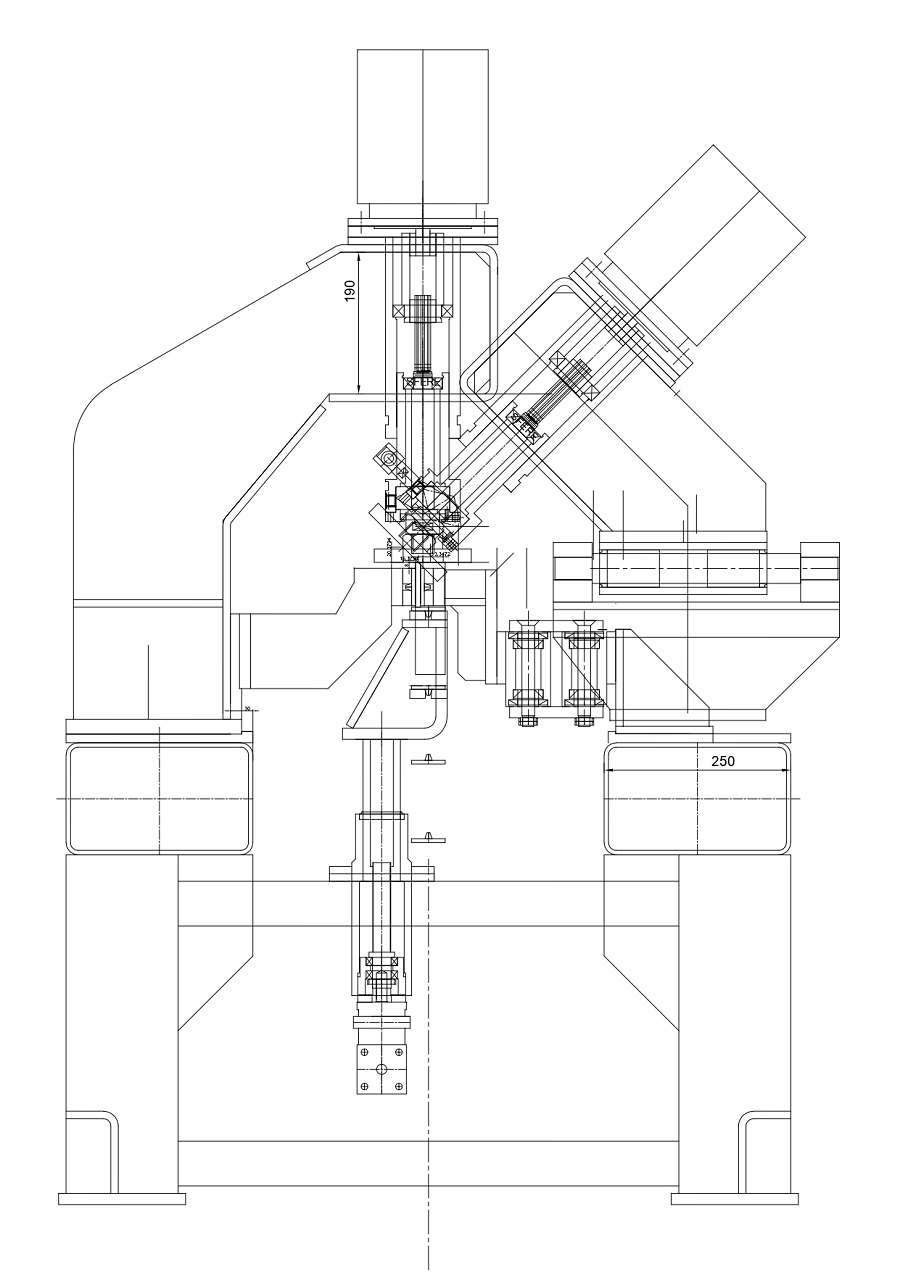

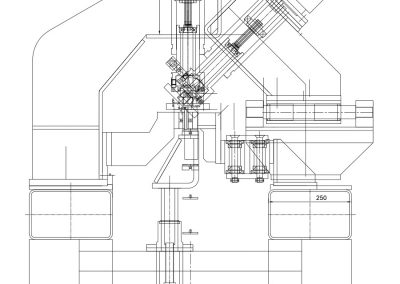

It consists of a group of 14 polishing spindles in vertical position, plus 2 groups for the 45 ° chamfering of both sides of the edge, each made up of 3 spindles.

The filagna is positioned vertically along the part to be worked.

It is vertically blocked by a pressure belt which compresses it on the opposite side, against the sliding belt.

In the lower part, the string is supported by a horizontal support belt (worktop elevator) that lowers or raises according to the working height.

Technical features

  • Maximum processing height: 150.0 mm
  • Minimum processing height: 60.0 mm
  • Maximum processing thickness: 40.0 mm
  • Number of smoothing and polishing groups: 14
  • Number of 45 ° chamfering groups: 06
  • Maximum tool diameter: 125.0 mm
  • Bevel feed rate automatically adjustable from the control panel: 70.0 mm
  • Speed of the sliding belts: 0 ÷ 4.000,0 mm / min
  • Length of the machine: 6,500.0 mm
  • Machine width: 1,650.0 mm
  • Height of the machine: 1,900.0 mm
  • Power of each polishing unit: 2.2 kW
  • Power of each bevel group: 2.2 kW
  • Total installed power: 30.0 kW
  • Machine weight: 6,500.0 kg
  • Water consumption for cooling: 180.0 l / min is recommended
  • Maximum pneumatic system pressure: 8.0 bar
  • Network frequency: 50 Hz
  • Mains voltage: 400.0V
  • Electricity supply phases: 3
